High Security Welded 358 Mesh Panels and Welded V Bend Panels

High security welded mesh panel fencing system for offshore petrochemical projects, which requires 358 mesh panels, welded V bend panels with zinc Alu and powder coating, and galfan wires.

Galfan wires

• Galfan wire zinc 95% Al 5% in sizes 4.0, 4.5 & 5.0 mm with tensile strength 550 N/mm².
• Coil size 200–500 kgs.

Welded mesh panels of the following sizes/specs:

• High security weld mesh as per below spec:

  • Material: MS.
  • Wire diameter: 4 mm.
  • Coating: weld mesh as per EN 10223-7.
  • Mesh wire:
    • Horizontal wire dia. 4.0 mm (+/-0.05 mm).
    • Vertical wire dia. 4.0 mm (+/-0.05 mm).
  • Mesh size: 12.7 × 76.2 mm.
  • Panel size: 2600 × 800 mm.
  • Weight: 20.52 kg.
  • Coating: galfan 240 gsm (95% zinc, 5% aluminum) & 60 to 80 microns of powder coating.
  • Color: RAL 6005.
  • Powder coating should withstand 1000 hours of salt spray test.
  • Wire tensile strength: min 550 N/Sq.mm.
  • Weld tensile strength: min 70% of wire tensile strength.

• Weld mesh panels as per below spec:

  • Mesh wire: horizontal wire dia. 5.0 mm (+/- 0.05 mm); vertical wire dia. 4.5 mm (+/-0.05 mm).
  • Mesh size: 50 × I00 mm - V bend & 50 × 200 mm along mesh.
  • Panel size: 2600 × 800 mm.
  • Panel weight: 9.3 kg.
  • Coating: Zinc Alu 240 gsm (95% zinc, 5% Aluminum) & 60 to 80 microns of powder coating.
  • Color: RAL 6005. Powder coating should withstand 1000 hrs of salt spray test.
  • Wire tensile strength: min 550 N/Sq.mm.
  • Weld tensile strength: min 70% of wire tensile strength.
  • Material: MS.
  • Mesh wire dia. 4mm.
  • Coating: weld mesh as per EN 10223-7.

• Weld mesh panels:

  • Mesh wire: horizontal wire dia. 5.0 mm, vertical wire dia. 4.5 mm.
  • Mesh size: Mesh size of 50 × l00 mm – V Bend and 50 × 200 mm along mesh.
  • Panel size (W & H) (Tol+/-5%): 2600 × 1000 mm.
  • Panel weight: 11.02 kg.
  • Coating: Zinc Alu 240 gsm (95% Zinc, 5% Aluminium) & 60 to 80 microns of Powder coating.
  • Color: RAL 6005.
  • Powder coating withstand 1000 Hours of salt spray test.
  • Wire tensile strength: min 550 N/Sq.mm.
  • Weld tensile strength: min 70% of wire tensile strength.
  • Material: MS.
  • Mesh wire dia. 4 mm.
  • Weld mesh as per EN 10223.

•

  OPP-01: High security welded 358 mesh panel.

•

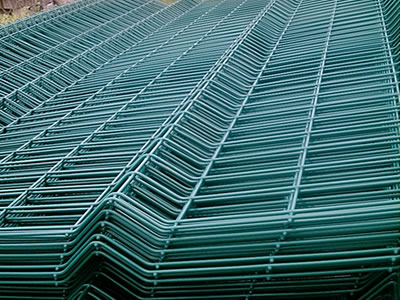

  OPP-02: Welded wire mesh panels with V bends.
