Anti-Climb 358 Mesh and Concertina Razor Wire Fence

High security anti-climb fencing system for oil and gas services project, covering anti-climb 358 mesh in yellow color, hot galvanised boat fence, and double coil galvanised razor concertina wires.

Anti-Climb fence 358

  • Fence panel material: low carbon steel rod.
  • Surface treatment: hot galvanized to be painted final color yellow.
  • Fence post material: carbon steel hod-dipped galvanized tube.
  • Surface treatment: to be painted final color yellow.
  • Qty: 2000 m2.

Boat fence

  • Descriptions: clamped on the pillar of the two upper floors of the ladder of the boat landing.
  • To be painted system final color orange (RAL 2011).
  • Using 15000 around 3 m2 of grating.
  • Fence panel material: low carbon steel rod.
  • Surface treatment: hot galvanized.
  • Fence post material: carbon steel hod-dipped galvanized tube.
  • Qty: 1000 m2.
  • A 358 type mesh panel in yellow painted.

    OGP-01: Anti-Climb fence 358 mesh.

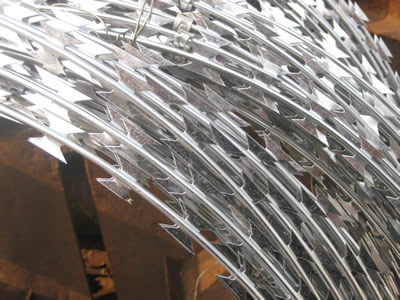

  • A coil of zinc coated concertina wires with galvanized clips.

    OPP-02: Hot dip galvanized concertina wires.

Razor wire:

  • 30 in. double coil concertina.
  • Barbed tape material: 430 ss 0.025 in. thick.
  • Core-wire material 0.098 galvanized steel class III.
  • Barb clusters per loop: 43 in.
  • Coil loops: 31.
  • Coil loop spacing: 1 inch.
  • Attachment points: 3.
  • Qty: 2000 m.

36 inch diameter galvanized concertina wire:

  • Diameter of the wire must be equal to or nearly equal to 609 mm.
  • The wire must be hot dip galvanized and zinc coated.
  • Blade style should be BTO-18, with wire thickness of 0.5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent.

12 inch diameter galvanized concertina wire:

  • Diameter of the wire must be equal to or nearly equal to 609 mm.
  • The wire must be hot dip galvanized and zinc coated.
  • Blade style should be BTO-18, with wire thickness of 0.5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent.
